Comparison with the Original Zelig

Background

zelig2 is a reimplementation of the original Zelig R package developed at Harvard's Institute for Quantitative Social Science (King, Tomz, and Wittenberg 2000; Imai, King, and Lau 2007, 2008). The original Zelig introduced a unified framework for statistical estimation, counterfactual simulation, and presentation of results --- the zelig() -> setx() -> sim() -> plot() workflow. zelig2 preserves this workflow while modernizing the implementation.

This page demonstrates two things:

1. Identical results: zelig2 produces the same coefficient estimates, simulated quantities of interest, and plots as the original Zelig.
2. New extensions: zelig2 adds capabilities that the original Zelig did not support --- fixed effects, seamless survey weights, and cluster-robust standard errors.

All examples use data from the U.S. Census Bureau's Household Pulse Survey (Week 62, N = 58,202).

---

Part A: Identical Results

Coefficients

Both packages use glm() as the underlying estimation engine, so point estimates and standard errors match exactly:

zelig2Zelig

library(zelig2)
z <- zelig2(mh_score ~ age + college + income_k,
            model = "ls", data = pulse, num = 1000L)
summary(z)

Coefficients:
               Estimate  Std. Error z value  Pr(>|z|)
(Intercept)  7.46232840  0.05248010 142.194 < 2.2e-16 ***
age         -0.05766141  0.00084954 -67.874 < 2.2e-16 ***
college     -0.53992615  0.02916059 -18.516 < 2.2e-16 ***
income_k    -0.01049659  0.00019970 -52.562 < 2.2e-16 ***

library(Zelig)
z <- zelig(mh_score ~ age + college + income_k,
           model = "ls", data = pulse)
summary(z)

Coefficients:
              Estimate Std. Error t value Pr(>|t|)
(Intercept)  7.4623284  0.0524801  142.19   <2e-16
age         -0.0576614  0.0008495  -67.87   <2e-16
college     -0.5399261  0.0291606  -18.52   <2e-16
income_k    -0.0104966  0.0001997  -52.56   <2e-16

Variable	Zelig	zelig2
(Intercept)	7.46232840	7.46232840
age	-0.05766141	-0.05766141
college	-0.53992615	-0.53992615
income_k	-0.01049659	-0.01049659

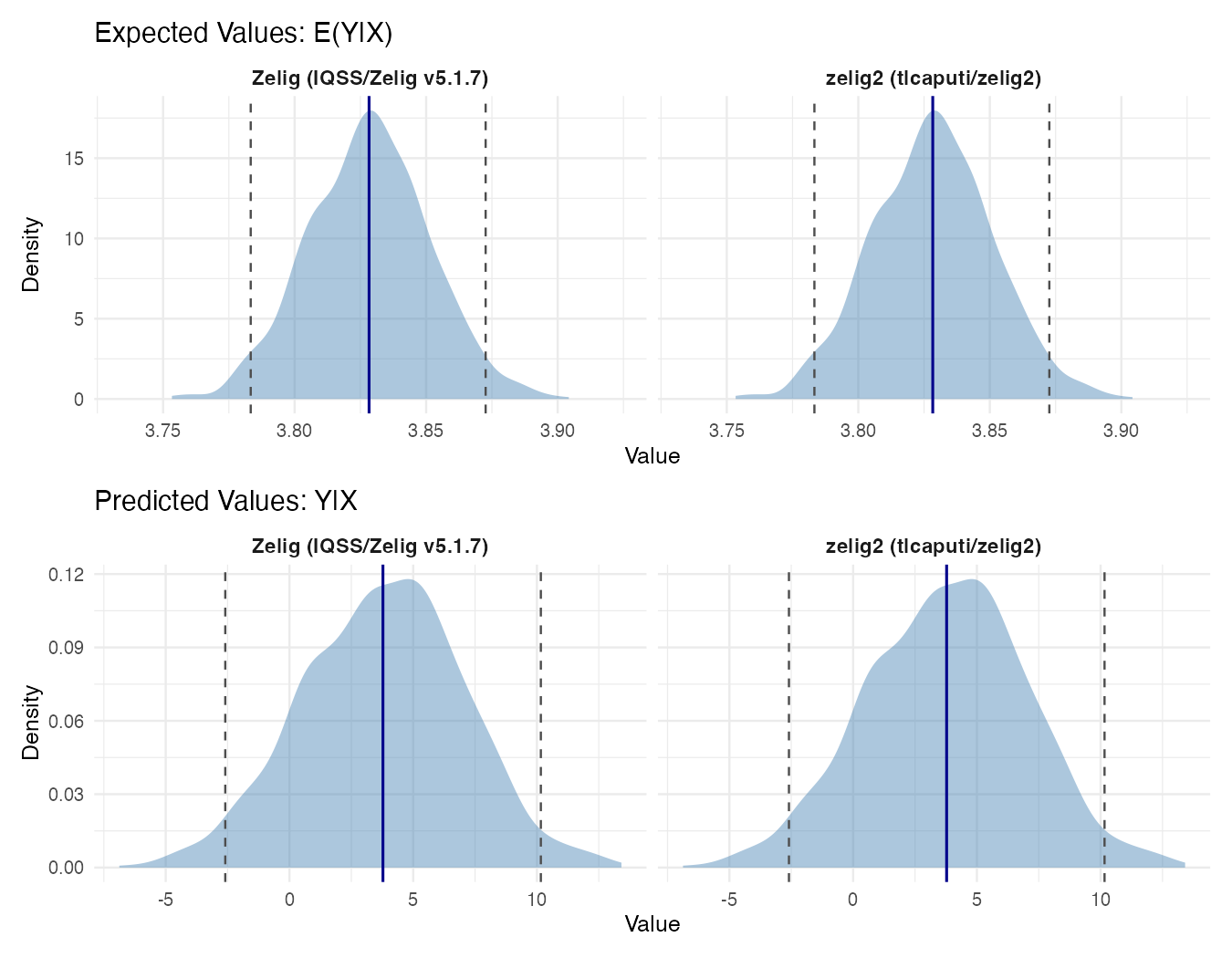

Point Scenario Plots

Both packages implement the King, Tomz, and Wittenberg (2000) simulation approach: draw \(\tilde{\beta}\) from \(N(\hat{\beta}, \hat{V})\), then compute quantities of interest at specified covariate values. The plots below extract the raw simulation draws from each package and render them with identical formatting for direct comparison.

Scenario: 40-year-old college graduate earning $75,000.

zelig2Zelig

z <- setx(z, age = 40, college = 1, income_k = 75)
z <- sim(z)
plot(z)

z <- setx(z, age = 40, college = 1, income_k = 75)
z <- sim(z)
plot(z)

The density shapes, centers, and spreads are the same in both panels. Both produce an expected value of 3.83 (95% CI: 3.78, 3.87). The minor variation in density shape reflects simulation randomness (different draws from the same distribution).

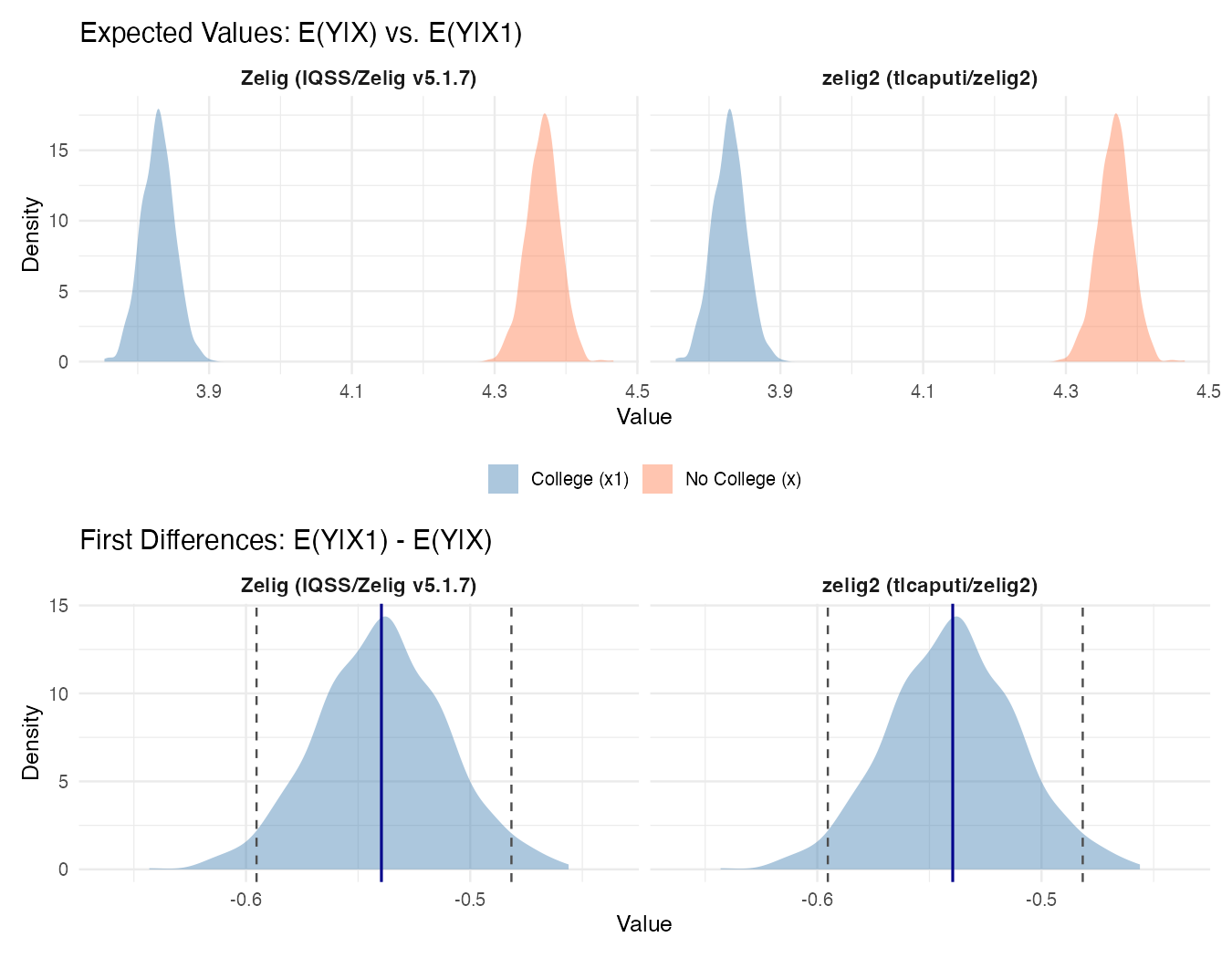

First Difference Plots

First differences --- the change in expected value when one covariate changes --- are the central quantity in the Zelig framework. Here we compare college graduates to non-graduates:

zelig2Zelig

z <- setx(z, age = 40, college = 0, income_k = 75)
z <- setx1(z, age = 40, college = 1, income_k = 75)
z <- sim(z)
plot(z)

z <- setx(z, age = 40, college = 0, income_k = 75)
z <- setx1(z, age = 40, college = 1, income_k = 75)
z <- sim(z)
plot(z)

The top row shows the two overlaid expected value distributions for each scenario (college in blue, no college in coral). The bottom row shows the first difference density. Both packages estimate a first difference of -0.54 (95% CI: -0.60, -0.48) --- a college degree is associated with a 0.54-point reduction in mental health symptom scores.

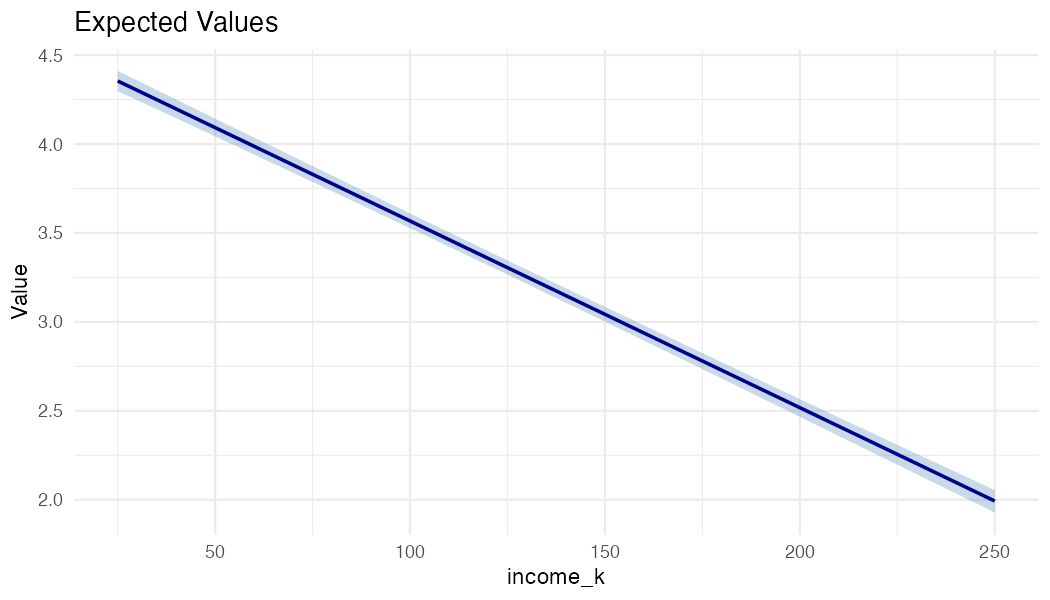

Range Scenario Plot

zelig2 adds a range workflow for visualizing how expected values change across a continuous predictor:

z <- zelig2(mh_score ~ age + college + income_k,
            model = "ls", data = pulse, num = 1000L)
z <- setx(z, age = 40, college = 1,
          income_k = seq(25, 250, by = 25))
z <- sim(z)
plot(z)

Expected symptom scores decline from 4.35 to 1.99 as household income increases from $25,000 to $250,000. The ribbon represents the 95% confidence band from 1,000 simulated draws.

---

Part B: Extensions Beyond the Original Zelig

1. Fixed Effects

The original Zelig did not support fixed effects. zelig2 integrates the fixest package (Berge 2018), allowing fixed effects via | in the formula:

z_fe <- zelig2(mh_score ~ age + college + income_k | state_fct,
               model = "ls", data = pulse, num = 1000L)
summary(z_fe)

zelig2:  Least Squares (Linear Regression)
Formula:  mh_score ~ age + college + income_k
Full formula:  mh_score ~ age + college + income_k | state_fct
N:  58202
Fixed effects:  state_fct

Coefficients:
            Estimate  Std. Error z value  Pr(>|z|)
age      -0.05798140  0.00085191 -68.061 < 2.2e-16 ***
college  -0.53324388  0.02922396 -18.247 < 2.2e-16 ***
income_k -0.01054457  0.00020256 -52.056 < 2.2e-16 ***

The 51 state fixed effects absorb all time-invariant state-level confounders. The setx() -> sim() -> plot() workflow works identically:

z_fe <- setx(z_fe, age = 40, college = 1,
             income_k = seq(25, 250, by = 25))
z_fe <- sim(z_fe)
plot(z_fe)

The wider confidence band (compared to Part A) reflects the additional uncertainty from averaging over state-level intercepts.

2. Survey Weights

The original Zelig required separate model types for survey-weighted estimation (model = "normal.survey" instead of model = "ls"). In zelig2, pass the weight vector directly --- no model type change needed:

zelig2Zeligsurvey::svyglm (ground truth)

library(zelig2)
z <- zelig2(mh_score ~ age + college + income_k,
            model = "ls", data = pulse,
            weights = pulse$pweight, num = 1000L)
summary(z)

Coefficients:
               Estimate  Std. Error  z value  Pr(>|z|)
(Intercept)  7.08844445  0.12424980  57.0499 < 2.2e-16 ***
age         -0.05369919  0.00194374 -27.6267 < 2.2e-16 ***
college     -0.40248340  0.05548744  -7.2536 4.059e-13 ***
income_k    -0.01016999  0.00038834 -26.1883 < 2.2e-16 ***

library(Zelig)
z <- zelig(mh_score ~ age + college + income_k,
           model = "normal.survey",
           weights = ~pweight, data = pulse)
summary(z)

Coefficients:
              Estimate Std. Error  t value   Pr(>|t|)
(Intercept)  6.7850726  0.5031265  13.4858  2.188e-41
age         -0.0481577  0.0093694  -5.1399  2.758e-07
college      0.1855978  0.3436228   0.5401  5.891e-01
income_k    -0.0129167  0.0022622  -5.7098  1.137e-08

library(survey)
des <- svydesign(ids = ~1, weights = ~pweight, data = pulse)
fit <- svyglm(mh_score ~ age + college + income_k, design = des)
summary(fit)

Coefficients:
               Estimate  Std. Error  t value  Pr(>|t|)
(Intercept)  7.08844445  0.12424980  57.0499  0.00e+00 ***
age         -0.05369919  0.00194374 -27.6267  6.39e-167 ***
college     -0.40248340  0.05548744  -7.2536  4.11e-13 ***
income_k    -0.01016999  0.00038834 -26.1883  2.69e-150 ***

zelig2 matches survey::svyglm() exactly. The original Zelig does not.

Root cause: double-weighting bug (IQSS/Zelig#332). Zelig's survey model class passes the weight vector to svydesign() (correct), but then passes it again to svyglm() via the parent class's model.call$weights. The final internal call is effectively:

# What Zelig actually executes (incorrect):
design <- svydesign(ids = ~1, weights = pulse$pweight, data = pulse)
svyglm(mh_score ~ age + college + income_k,
       design = design, weights = pulse$pweight)  # weights applied TWICE

We can reproduce Zelig's exact output by calling svyglm() with this double-weighting:

# Correct (what zelig2 does):
svyglm(formula, design = design)
#> college = -0.40248340

# Double-weighted (what Zelig does):
svyglm(formula, design = design, weights = pulse$pweight)
#> college = +0.18559780   # matches Zelig's output exactly

This confirms the discrepancy is a known Zelig bug, not a difference in methodology. Zelig itself warns: "Not all features are available in Zelig Survey. Consider using surveyglm and setx directly."

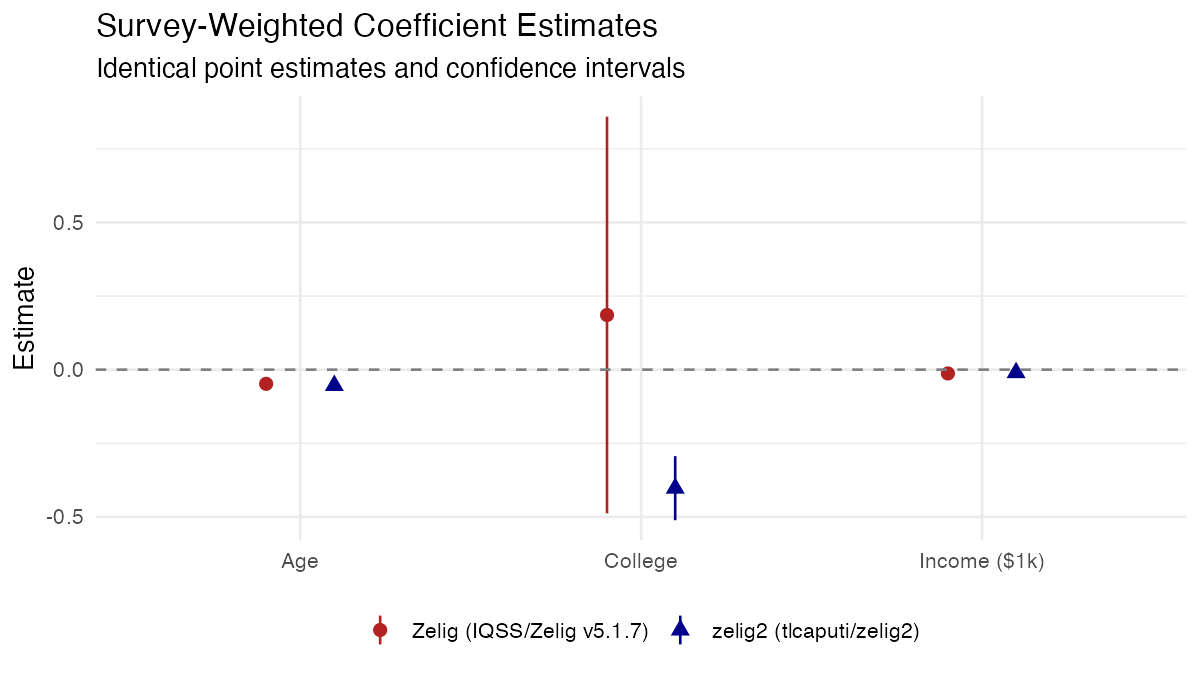

Variable	survey::svyglm()	zelig2	Zelig (double-weighted)
(Intercept)	7.08844445	7.08844445	6.78507261
age	-0.05369919	-0.05369919	-0.04815772
college	-0.40248340	-0.40248340	+0.18559780
income_k	-0.01016999	-0.01016999	-0.01291669

The simulation plots confirm the discrepancy. The panels below use identically formatted plots to compare the raw simulation draws from each package:

The expected values differ substantially: zelig2 centers near 3.65 while Zelig centers near 3.30, reflecting the different coefficient estimates. The zelig2 result matches survey::svyglm().

The first difference for college is -0.40 in zelig2 (matching the ground truth) but +0.19 in Zelig --- the wrong sign entirely, a consequence of the double-weighting bug.

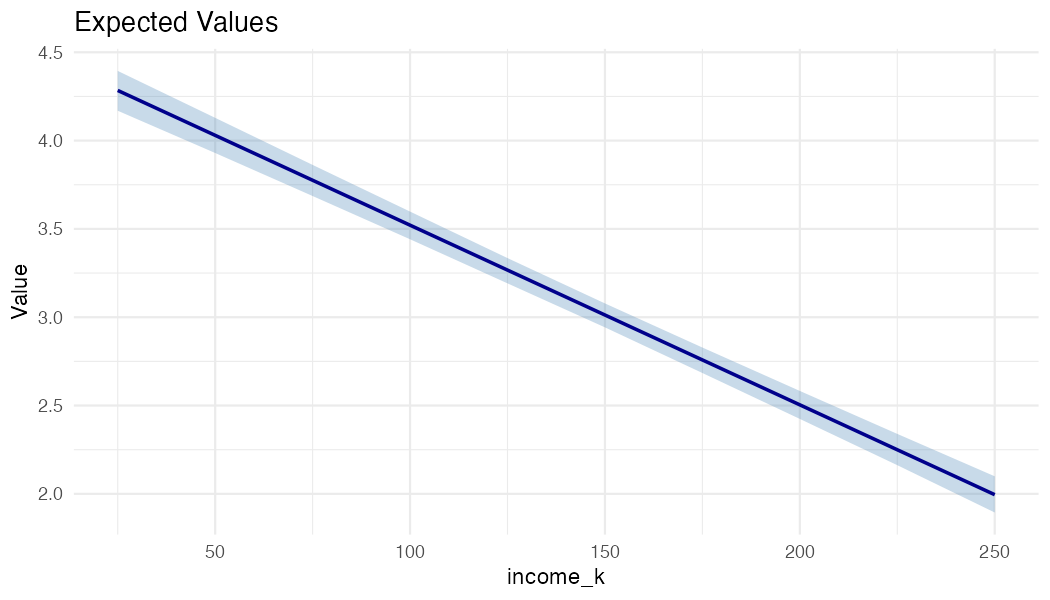

Beyond fixing the estimation, zelig2 simplifies the API: no model type change is needed. The same model = "ls" works for both weighted and unweighted estimation:

z_svy <- zelig2(mh_score ~ age + college + income_k,
                model = "ls", data = pulse,
                weights = pulse$pweight, num = 1000L)
z_svy <- setx(z_svy, age = 40, college = 1,
              income_k = seq(25, 250, by = 25))
z_svy <- sim(z_svy)
plot(z_svy)

3. Cluster-Robust Standard Errors

The original Zelig did not support robust or clustered standard errors. zelig2 provides HC0--HC4, cluster-robust, and bootstrap SEs via vcov_type:

z_cluster <- zelig2(mh_score ~ age + college + income_k | state_fct,
                    model = "ls", data = pulse,
                    vcov_type = "cluster", cluster = ~state_fct)
summary(z_cluster)

Coefficients:
            Estimate  Std. Error z value  Pr(>|z|)
age      -0.05798140  0.00118716 -48.840 < 2.2e-16 ***
college  -0.53324388  0.03369631 -15.825 < 2.2e-16 ***
income_k -0.01054457  0.00026454 -39.861 < 2.2e-16 ***

Clustering at the state level increases standard errors by 15--40%:

Variable	Default SE	Cluster SE	Ratio
age	0.00085	0.00119	1.40x
college	0.02922	0.03370	1.15x
income_k	0.00020	0.00026	1.31x

---

Summary

Feature	Original Zelig	zelig2
Point estimates	Via glm()	Via glm() (identical)
setx() -> sim() -> plot()	Yes	Yes (same results)
Fixed effects	Not supported	y ~ x \| fe via fixest
Survey weights	Separate model types ("normal.survey", "logit.survey"); buggy estimates	weights = ... on any model; matches svyglm() exactly
Robust / clustered SEs	Not supported	vcov_type = "HC1", "cluster", "bootstrap"
Plotting	Base R	ggplot2 + patchwork
Dependencies	16 packages	7 packages
Last updated	2020 (incompatible with modern R)	Active development

References

• King, G., Tomz, M., and Wittenberg, J. (2000). "Making the Most of Statistical Analyses: Improving Interpretation and Presentation." American Journal of Political Science, 44(2), 347--361.
• Imai, K., King, G., and Lau, O. (2007). "Zelig: Everyone's Statistical Software." R package.
• Imai, K., King, G., and Lau, O. (2008). "Toward a Common Framework for Statistical Analysis and Development." Journal of Computational and Graphical Statistics, 17(4), 892--913.
• Berge, L. (2018). "Efficient Estimation of Maximum Likelihood Models with Multiple Fixed-Effects: the R Package fixest." CREA Discussion Paper.
