Worked Example¶
This page walks through a complete analysis: we generate panel data, run both a canonical event study and a DLM, compare the results, and plot them. You can copy and paste the code directly into R or Stata.
The Setup¶
We generate a balanced panel of 500 units observed over 20 time periods. About 40% of units receive treatment starting at time 7, 8, or 9 (randomly drawn). The true treatment effect is −3: after treatment onset, the outcome drops by 3 units on average.
Because treatment is binary and absorbing (turns on once and stays on), both the canonical event study and the DLM should produce identical estimates. This example demonstrates that.
Step 1: Generate the Data¶
library(dlm)
library(dplyr)
library(ggplot2)
# Generate test data (true effect = -3)
df <- generate_data(seed = 42, n_groups = 500, n_times = 20, treat_prob = 0.4)
# Separate outcome and exposure data (required by the R interface)
outcome_data <- df %>% select(group, time, outcome)
exposure_data <- df %>% select(group, time, post) %>% distinct()
The generated data has columns unit (or group), time, outcome, post (binary treatment indicator), and years_to_treatment (event time, with −1000 for never-treated units).
Step 2: Run the Canonical Event Study¶
First, we estimate a standard event study using binned-endpoint event-time dummies. This is the approach most researchers are familiar with: create dummy variables for each event-time period (e.g., \(D_{-3}, D_{-2}, D_0, D_1, D_2, D_3\)), omit the reference period (\(t = -1\)), and regress the outcome on these dummies with unit and time fixed effects.
The endpoints are "binned" — the \(D_{-3}\) dummy equals 1 for all units at event time \(-3\) or earlier, and \(D_3\) equals 1 for all units at event time \(3\) or later.
# Run a binned-endpoint event study
es <- standard_twfe_for_comparison(
data = df,
from_rt = -3, to_rt = 3,
outcome = "outcome",
time = "time", unit = "group",
time_to_treatment = "years_to_treatment",
treat = "treat",
ref_period = -1
)
# Event-study coefficients
es$betas
# coef se tval pval
# time_to_treatment::-3+:treat -0.11846256 0.4729260 -0.2504886 8.023126e-01
# time_to_treatment::-2:treat -0.06327287 0.5139965 -0.1230998 9.020776e-01
# time_to_treatment::0:treat -2.64104056 0.5438700 -4.8560142 1.605193e-06
# time_to_treatment::1:treat -2.26029265 0.5234023 -4.3184616 1.896217e-05
# time_to_treatment::2:treat -3.04210098 0.5674556 -5.3609494 1.267789e-07
# time_to_treatment::3+:treat -2.61751913 0.4214689 -6.2104686 1.113671e-09
* Determine the estimation window
* The DLM uses observations in [min_time + to, max_time - (abs(from) - 1)]
* With from=-3, to=3, times 1-20: estimation window is [4, 18]
summarize time, meanonly
local tlo = r(min) + 3
local thi = r(max) - 2
* Create binned event-time dummies
gen byte es_m3 = (years_to_treatment <= -3) & (years_to_treatment != -1000)
gen byte es_m2 = (years_to_treatment == -2)
* ref = -1 is omitted
gen byte es_0 = (years_to_treatment == 0)
gen byte es_1 = (years_to_treatment == 1)
gen byte es_2 = (years_to_treatment == 2)
gen byte es_3 = (years_to_treatment >= 3) & (years_to_treatment != -1000)
* Run the event study
reghdfe outcome es_m3 es_m2 es_0 es_1 es_2 es_3 ///
if (time >= `tlo') & (time <= `thi'), ///
absorb(unit time) vce(cluster unit)
* Save ES coefficients (dlm will overwrite e(b) in Step 3)
matrix es_b = e(b)
Output (abridged):
HDFE Linear regression Number of obs = 7,500
Absorbing 2 HDFE groups F( 6, 499) = 25.67
| Robust
outcome | Coefficient std. err. t P>|t|
-------------+------------------------------------------------
es_m3 | -.0639588 .4835455 -0.13 0.895
es_m2 | .0946687 .4804238 0.20 0.844
es_0 | -2.763973 .4619066 -5.98 0.000
es_1 | -3.094282 .5204141 -5.95 0.000
es_2 | -2.707691 .5549396 -4.88 0.000
es_3 | -3.256921 .4261997 -7.64 0.000
Note
Stata and R use different random number generators, so seed(42) produces different data in each language. The coefficients differ numerically but the equivalence (DLM = event study) holds in both.
Interpretation. The pre-treatment coefficients at \(t = -3\) and \(t = -2\) are near zero, consistent with parallel trends. The post-treatment coefficients cluster around −2.3 to −3.3, matching the true effect of −3.
Step 3: Run the DLM¶
Now we estimate the same relationship using the DLM. Instead of event-time dummies, the DLM regresses the outcome on leads and lags of the treatment variable itself, then transforms the resulting "gamma" coefficients into "beta" coefficients via cumulative summation. The betas have the same interpretation as event-study coefficients.
# Estimate DLM with event window [-3, 3]
mod <- distributed_lags_model(
data = outcome_data,
exposure_data = exposure_data,
from_rt = -3, to_rt = 3,
outcome = "outcome", exposure = "post",
unit = "group", time = "time"
)
# DLM beta coefficients
mod$betas
# time_to_event coef se
# post_lead2 -3 -0.11846256 0.4729260
# post_lead1 -2 -0.06327287 0.5139965
# post_lag0 0 -2.64104056 0.5438700
# post_lag1 1 -2.26029265 0.5234023
# post_lag2 2 -3.04210098 0.5674556
# post_lag3 3 -2.61751913 0.4214689
* Estimate DLM with event window [-3, 3]
dlm outcome, exposure(post) unit(unit) time(time) from(-3) to(3)
Output:
------------------------------------------------------------------------
Distributed Lag Model (Schmidheiny & Siegloch 2023)
------------------------------------------------------------------------
Outcome: outcome
Exposure: post
Window: [-3, 3], ref = -1
N obs: 7500
N clusters: 500
------------------------------------------------------------------------
Time Coef SE 95% CI lo 95% CI hi
------------------------------------------------------------------------
-3 -0.063959 0.483545 -1.011708 0.883790
-2 0.094669 0.480424 -0.846962 1.036299
-1 (ref) . . .
0 -2.763973 0.461907 -3.669310 -1.858636
1 -3.094282 0.520414 -4.114294 -2.074271
2 -2.707691 0.554940 -3.795373 -1.620010
3 -3.256921 0.426200 -4.092272 -2.421569
------------------------------------------------------------------------
The DLM betas are identical to the event-study coefficients from Step 2.
Step 4: Verify Equivalence¶
Let's confirm the equivalence numerically.
# Compare DLM betas to event-study betas
comparison <- data.frame(
time = mod$betas$time_to_event,
dlm_beta = mod$betas$coef,
es_beta = es$betas$coef,
difference = abs(mod$betas$coef - es$betas$coef)
)
print(comparison)
# time dlm_beta es_beta difference
# 1 -3 -0.11846256 -0.11846256 2.178119e-13
# 2 -2 -0.06327287 -0.06327287 3.711059e-13
# 3 0 -2.64104056 -2.64104056 3.312906e-13
# 4 1 -2.26029265 -2.26029265 5.448975e-13
# 5 2 -3.04210098 -3.04210098 3.108624e-14
# 6 3 -2.61751913 -2.61751913 4.898304e-13
cat("Max difference:", max(comparison$difference), "\n")
# Max difference: 5.448975e-13
* Save DLM results
matrix dlm_b = e(betas)
* Compare (es_b was saved in Step 2 before dlm overwrote e(b))
display ""
display "DLM vs Event Study Comparison:"
display " Period DLM beta ES beta Difference"
display " ------ ---------- ---------- ----------"
local periods "-3 -2 0 1 2 3"
local es_cols "1 2 3 4 5 6"
local dlm_rows "1 2 4 5 6 7"
forvalues j = 1/6 {
local p : word `j' of `periods'
local c : word `j' of `es_cols'
local r : word `j' of `dlm_rows'
local dlm_coef = dlm_b[`r', 2]
local es_coef = es_b[1, `c']
local diff = abs(`dlm_coef' - `es_coef')
display " " %5.0f `p' " " %10.6f `dlm_coef' " " %10.6f `es_coef' " " %10.2e `diff'
}
Output:
The estimates match to machine precision (~\(10^{-13}\)). This confirms the theoretical result from Schmidheiny & Siegloch (2023): for a binary absorbing treatment, the DLM is a numerically identical reparametrization of the canonical binned-endpoint event study.
Step 5: Plot the Results¶
Both approaches produce the same event-study plot — coefficients by event time, with the reference period normalized to zero.
First, we prepare the data for plotting by adding the reference period (\(t = -1\), normalized to zero) back into each set of results:
# Add the reference period (t = -1, coef = 0) back in for plotting
dlm_df <- data.frame(
time_to_event = c(mod$betas$time_to_event, -1),
coef = c(mod$betas$coef, 0),
se = c(mod$betas$se, 0)
)
es_df <- data.frame(
time_to_event = c(-3, -2, -1, 0, 1, 2, 3),
coef = c(es$betas$coef[1:2], 0, es$betas$coef[3:6]),
se = c(es$betas$se[1:2], 0, es$betas$se[3:6])
)
* Extract DLM results into a plotting dataset
matrix b = e(betas)
preserve
clear
local nr = rowsof(b)
set obs `nr'
gen time_to_event = .
gen coef = .
gen ci_lo = .
gen ci_hi = .
forvalues i = 1/`nr' {
replace time_to_event = b[`i', 1] in `i'
replace coef = b[`i', 2] in `i'
replace ci_lo = b[`i', 4] in `i'
replace ci_hi = b[`i', 5] in `i'
}

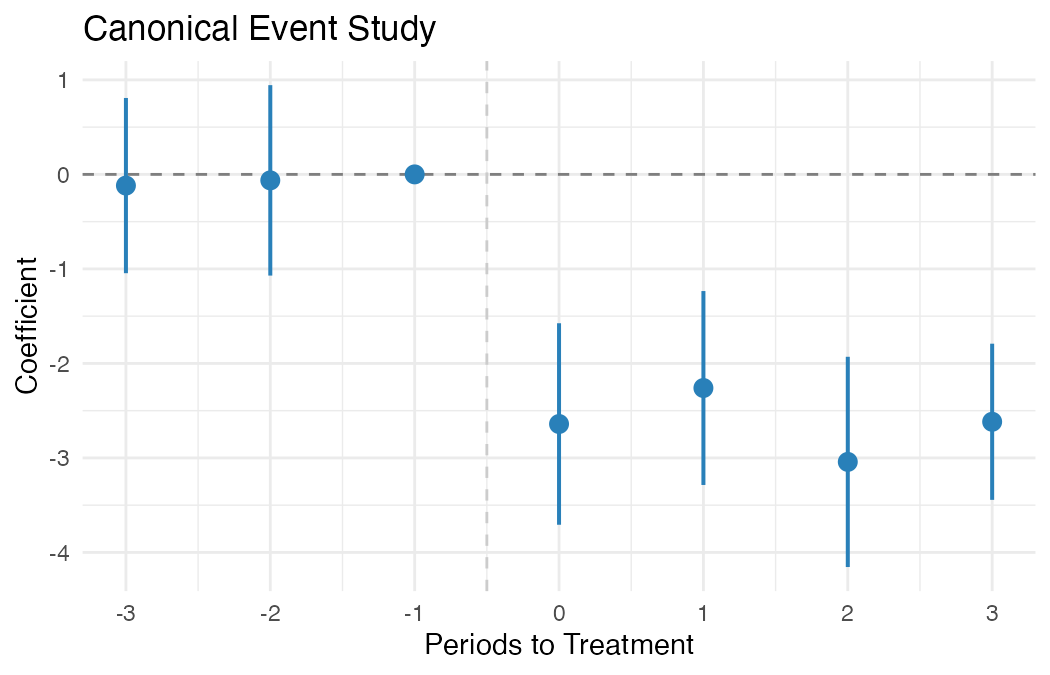

Now plot the canonical event-study estimates:
ggplot(es_df, aes(x = time_to_event, y = coef)) +
geom_hline(yintercept = 0, linetype = "dashed", color = "gray50") +
geom_vline(xintercept = -0.5, linetype = "dashed", color = "gray80") +
geom_pointrange(aes(ymin = coef - 1.96 * se, ymax = coef + 1.96 * se),
color = "#2980b9", size = 0.7, linewidth = 0.9) +
scale_x_continuous(breaks = -3:3) +
labs(title = "Canonical Event Study",
x = "Periods to Treatment", y = "Coefficient") +
theme_minimal(base_size = 14)

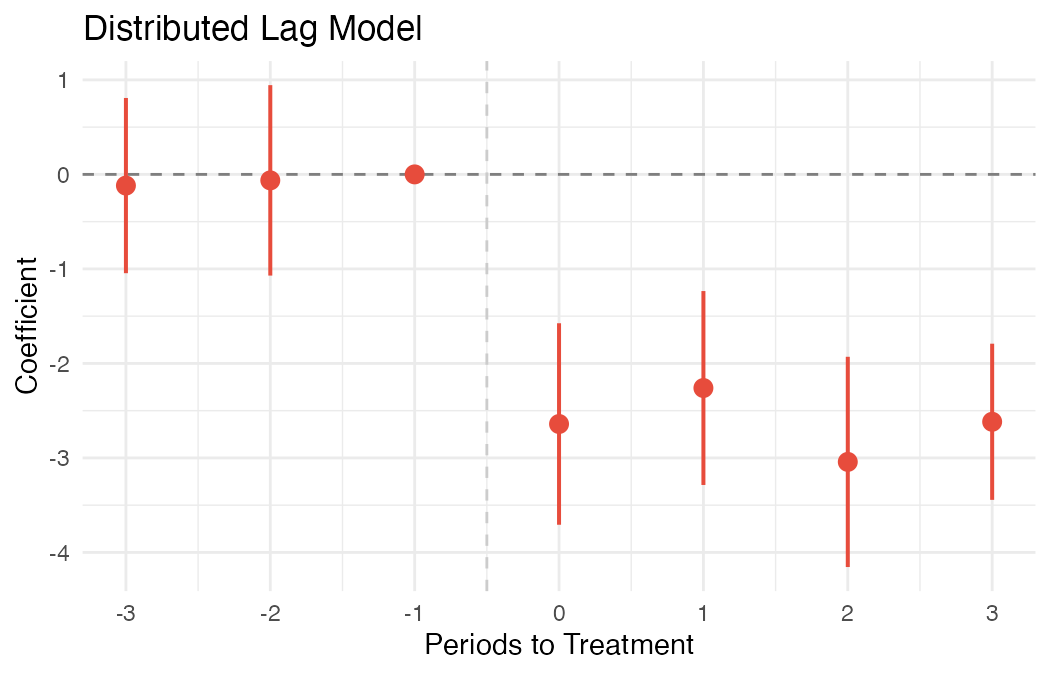

And the DLM estimates:
ggplot(dlm_df, aes(x = time_to_event, y = coef)) +
geom_hline(yintercept = 0, linetype = "dashed", color = "gray50") +
geom_vline(xintercept = -0.5, linetype = "dashed", color = "gray80") +
geom_pointrange(aes(ymin = coef - 1.96 * se, ymax = coef + 1.96 * se),
color = "#e74c3c", size = 0.7, linewidth = 0.9) +
scale_x_continuous(breaks = -3:3) +
labs(title = "Distributed Lag Model",
x = "Periods to Treatment", y = "Coefficient") +
theme_minimal(base_size = 14)
twoway (rcap ci_lo ci_hi time_to_event, lcolor(navy)) ///
(scatter coef time_to_event, mcolor(navy) msymbol(circle)), ///
yline(0, lpattern(dash) lcolor(gray)) ///
xline(-0.5, lpattern(dash) lcolor(gray)) ///
xtitle("Periods to Treatment") ytitle("Coefficient") ///
title("Event-Study Plot") legend(off)
restore
drop es_*

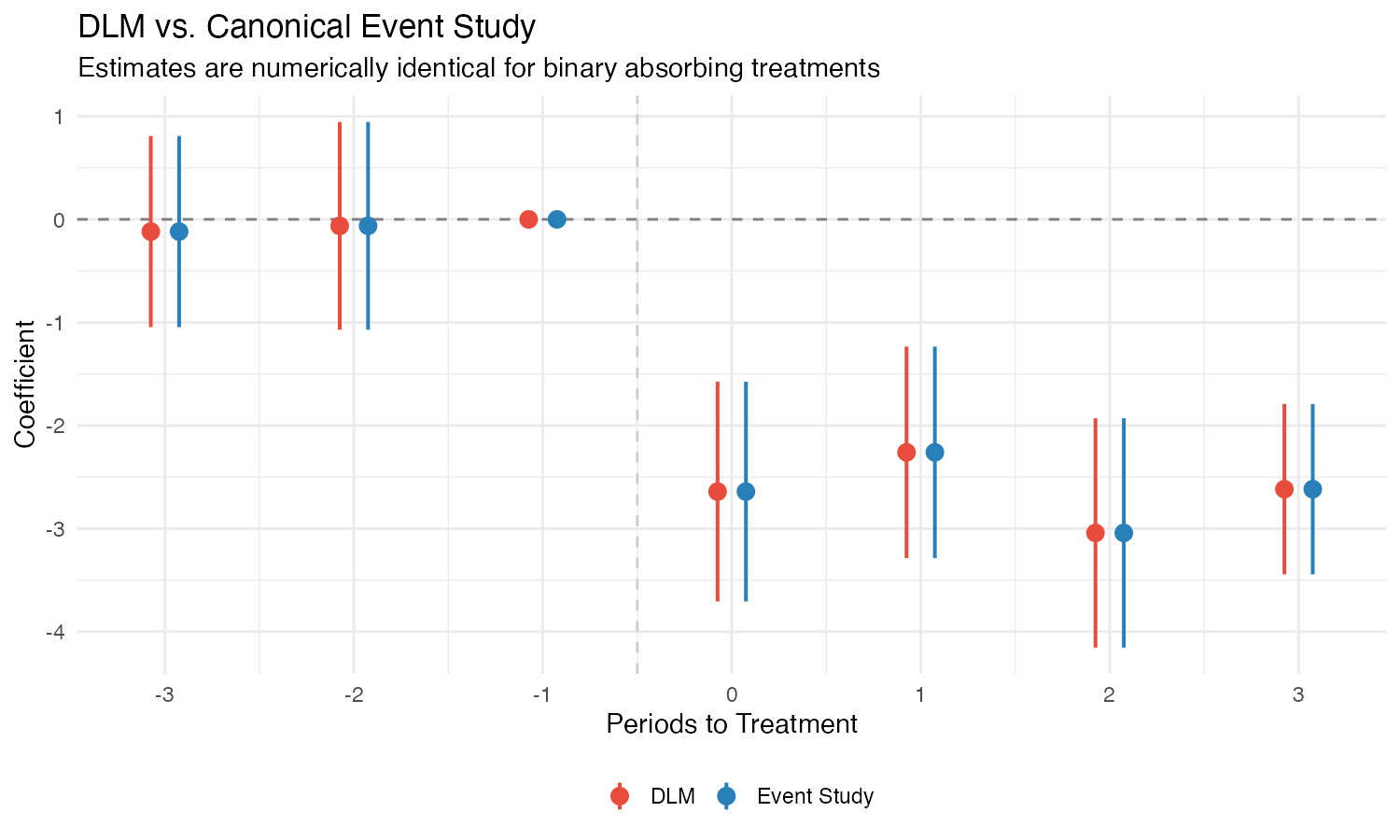

The two plots are identical. We can overlay them to confirm:
combined_df <- rbind(
dlm_df %>% mutate(method = "DLM"),
es_df %>% mutate(method = "Event Study")
)
ggplot(combined_df, aes(x = time_to_event, y = coef, color = method)) +
geom_hline(yintercept = 0, linetype = "dashed", color = "gray50") +
geom_vline(xintercept = -0.5, linetype = "dashed", color = "gray80") +
geom_pointrange(aes(ymin = coef - 1.96 * se, ymax = coef + 1.96 * se),
position = position_dodge(width = 0.3),
size = 0.7, linewidth = 0.9) +
scale_color_manual(values = c("DLM" = "#e74c3c", "Event Study" = "#2980b9")) +
scale_x_continuous(breaks = -3:3) +
labs(title = "DLM vs. Canonical Event Study",
subtitle = "Estimates are numerically identical for binary absorbing treatments",
x = "Periods to Treatment", y = "Coefficient", color = "") +
theme_minimal(base_size = 14) +
theme(legend.position = "bottom")
Flat pre-trends near zero, then a sharp drop to around −2.6 at treatment onset — consistent with the true effect of −3. The DLM (red) and event study (blue) estimates are numerically identical.
Why This Matters¶
This example uses a binary absorbing treatment — the special case where the canonical event study works. Both approaches give the same answer, so why bother with DLMs?
The DLM's advantage appears when the treatment is continuous — e.g., a tax rate that changes from 0% to 5% to 8.5%, a minimum wage that increases in steps, or a policy dosage that varies across units and over time. In those settings, you can't create event-time dummies (there is no single "event"), but the DLM's lead/lag framework handles it naturally. See the Theory page for a concrete illustration with continuous treatment data.
